Vane Type Flow Switches

The FlowTech vane type flow switches are designed for reliable supervision of liquid flow through pipelines. In addition to general environments, these flow switches can be used in adverse weather conditions and fire prone environments.

Vane Type Flow SwitchesThese vane operated flow / no flow switches come with the following advantages

  • Easily configurable flow monitoring and control.
  • Made of rugged stainless steel (both internal & external trim) material.
  • Minimum line pressure loss on actuation.
  • Can be used with your existing system. No need for additional hardware.
  • Fit large range of pipe sizes and flow rates.

Typical Applications

The typically applications where our vane operated switches are used are

  • For protecting heavy pumps from dry run.
  • For supervision on brine, ferment wash systems, glycol etc.
  • In cooling systems of expensive machines such as compressors, high frequency induction furnaces etc.
  • In air conditioning plants to ensure water flow in the chiller, before the compressor operates.
  • Lubricating oil systems supervision.
  • Food grade application like milk etc.
  • Air application for supervision on air flow through huge blowers.

Flow Switch Options

General Purpose Enclosure

general-purpose-flow-switchesFor reliable monitoring of flow in general conditions or environments.

Weather Proof Enclosure

weather-proof-flow-switchesFor reliable monitoring of flow in adverse weather conditions or environments.


Flame Proof Enclosure

fire-proof-flow-switchesFor reliable monitoring of flow in fire prone & hot conditions.

Indicating Flow Switches

indicating-flow-switchesFor reliable monitoring & measurement of media flow with bar LEDs.

Materials Used

Both the vital internal & external trims of our flow switches are made from rugged brass and stainless steel materials. Even the screws and nameplates are made of stainless steel. We can also make them of custom materials to suit your required application.

  • Main Hexagonal Body: Brass or Stainless Steel 316.
  • Paddle: Brass or Stainless Steel 316.
  • Bellows: Stainless Steel 316.
  • Flapper: Stainless Steel 316 / 321 / 304.
  • Loading Spring: Stainless Steel.
  • Gaskets: Nitrile.

Our Vane Type Flow Switches

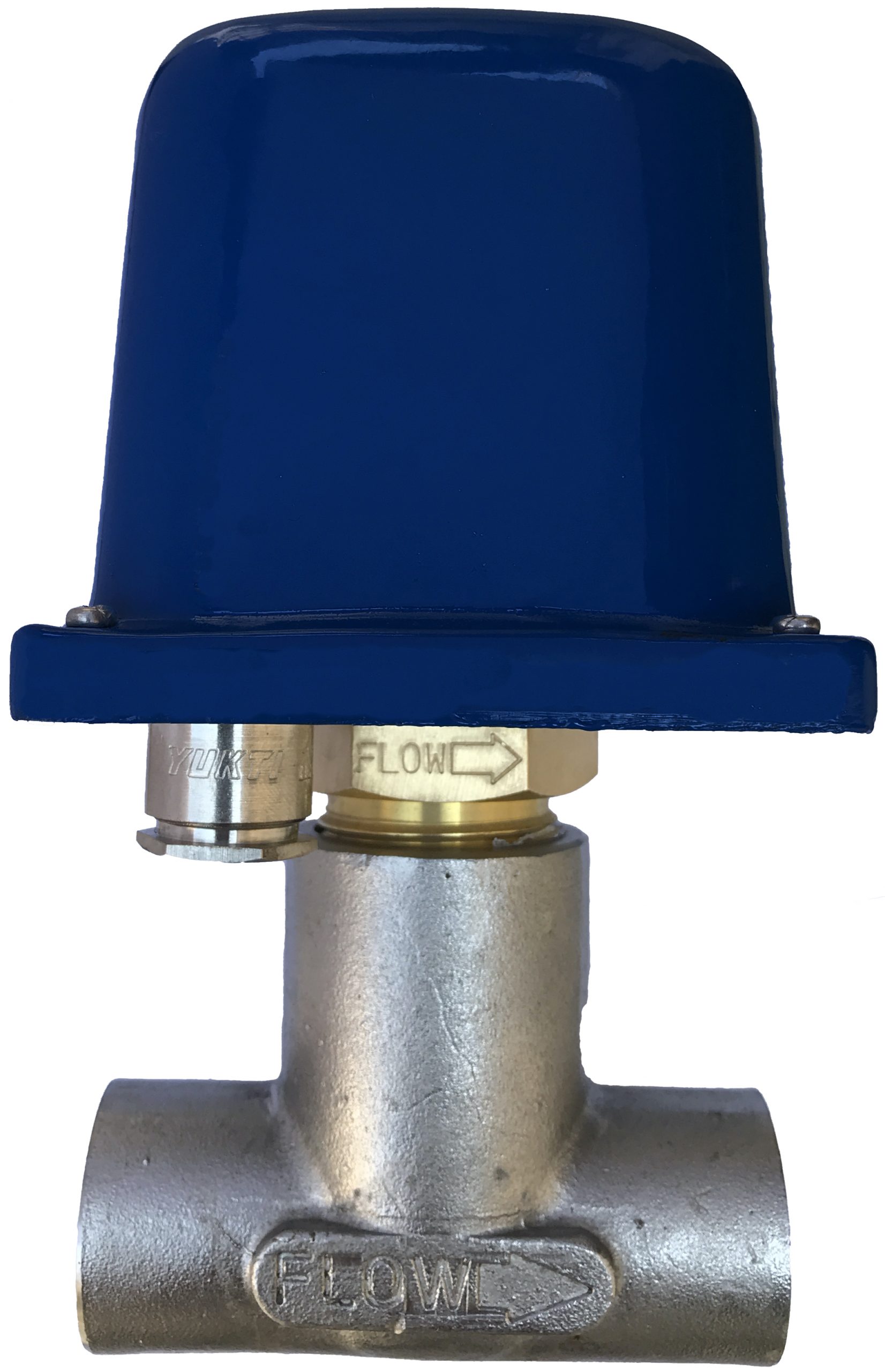

General Purpose Flow SwitchGeneral Purpose Flow Switch
FM4-GPS
General Purpose Flow SwitchGeneral Purpose Flow Switch
FM4-GP
Weather Proof Flow SwitchWeather Proof Flow Switch
FM4-WP
Weather Proof Flow SwitchWeather Proof Flow Switch
FM4-GPAS
General Purpose Flow SwitchGeneral Purpose Flow Switch
FM4-GPC
General Purpose Indicator Flow SwitchGeneral Purpose Flow Switch With Indicator
FM4-GPi

Request A Quotation

Visit our contact page to request a quote for our general purpose flow switches or download the product catalogue to learn more.
