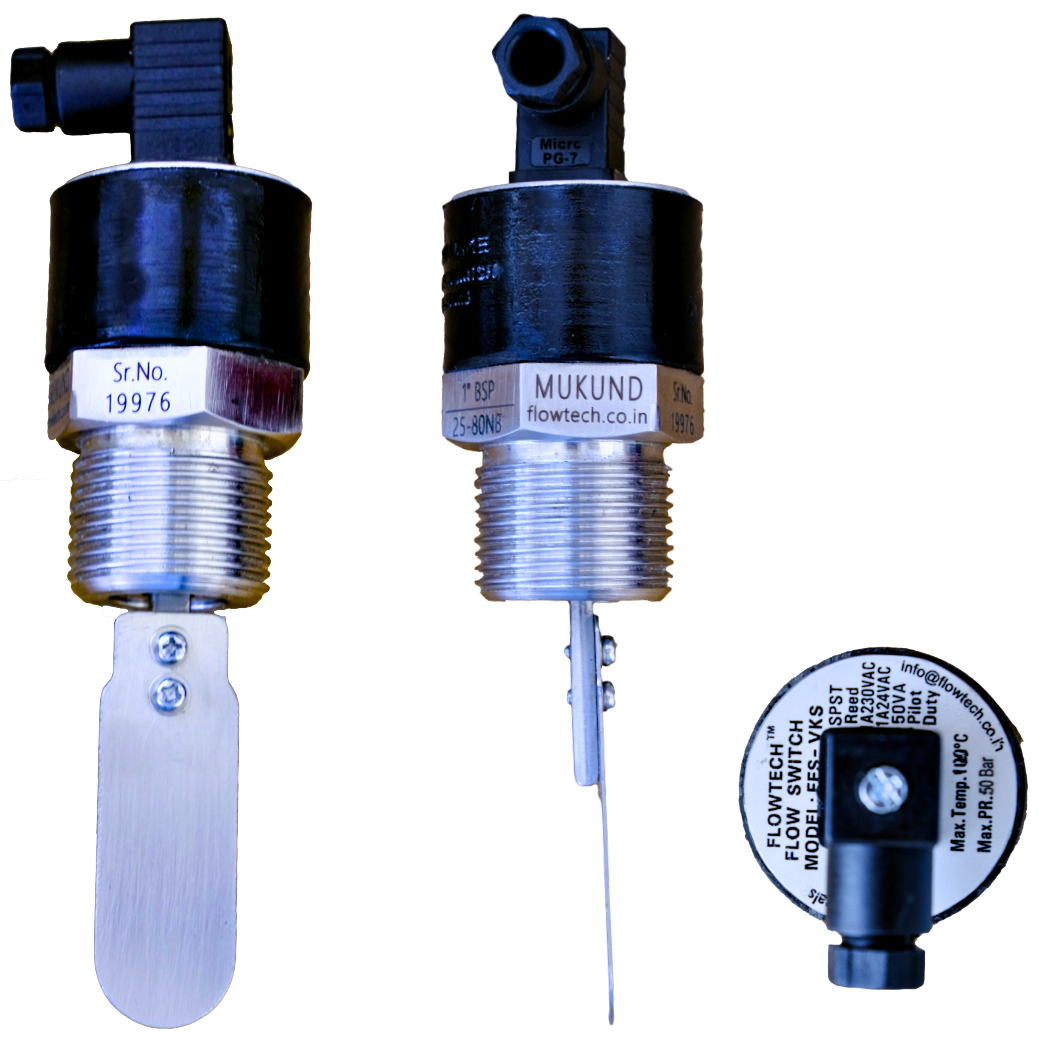

FLOWTECH ™ High Pressure flow switch | Model FFS-VKS
Monitoring Flow & NO-Flow
- Monitoring cooling loops for water & oil
- Alarm applications indicating no flow in High Pressure applications
- Heat Exchangers water flow supervision
- Air flow alarms in HVAC systems
Advantages
- 50 bar as standard operating pressure & higher pressure option on request.
- Suitable for water / Lubricating Oil / air & compatible gases.
- Made for use outdoor & indoor installations
- Offers wide range of process connections 1 inch or ¾ inch BSP / BSPT / NPT on request
- Made out of wetted parts of rugged & non-rusting SS-316L
- Switch with fixed factory set-point & 1% operational repeat accuracy
Specifications
- SPST (C-NO) reed potential free changeover contacts, 50 VA, 1A, 230 VAC / 24 VDC pilot duty
- Electrical connections via quick electrical connection via plug connector as per DIN EN 175301-803-A
- Max oprating temprature 100 Deg C
- Suitable for pipe size 25NB to 80 NB
- Complies with IP 65 enclosure protection class standards
- 1 inch BSP male as standard process connection
Request A Quotation
Click on Request a Quote or Click to Download Product Catalogue of all our flow switches or Click on Product Brochure to download this particular product details
Request Quotation or Download Product Brochure or Download Catalogue
